Overview

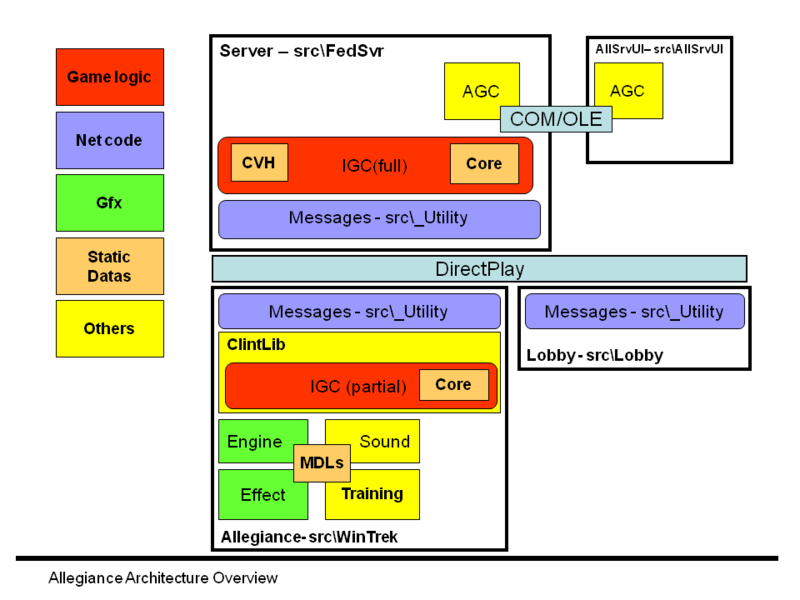

The key components of Allegiance are:

  • The client - Allegiance.exe
  • The server - AllSrv.exe
  • The lobby - AllLobby.exe


In a typical configuration there are many Allegiance Game Servers and clients (players) which connect to a single Allegiance Main Servers. The lobby is the central communication place where servers announce themselves (and the games they're hosting) and where clients can find, join or create games on a chosen server. A server can host many games at once but a client can join only one server and one game at a time.

These keys components share many lines of code with the use of common libraries.
The most notable ones are the messaging API library which is built on Microsoft DirectPlay and the IGC library which handles the game logic.


ZLib and Utility libraries
The '''ZLib''' library is a set of helper classes. It's used by all projects in the allegiance source.

The most notable items of ZLib are:
*the ''ZString'' class which deal with strings.
*the ''TRef<T>'' template class which deal with object pointers and automatic garbage collection.
*some maths objects (vector, matrix,...)
*the ''Window'' class and win32 main entry point

The '''Utility''' library deals with more complex stuff than the ZLib library:
*the collision API which use http://www.qhull.org/ Convex Hull
*the messaging API (network code) which is build on top of http://en.wikipedia.org/wiki/DirectPlay DirectPlay
*dynamic linked lists of pointers used widely in the several parts of the source.

IGC library
IGC stands for '''Internet Game Core'''. It's the game logic library (API) and it's shared between clients and servers.

IGC Interfaces & Objects
IGC is accessed with of a set of hierarchical abstract classes (interfaces) that hold all the game objects (ships, stations, sectors, etc) and their current properties (position, speed, etc). The top interface is ''ImissionIGC'' which represents a game. ''ImissionIGC'' is implemented in the ''CmissionIGC'' class (src\Igc\missionigc.cpp). It holds lists of all other objets (ships, stations, etc) and provides methods for accessing them. These lists are all implemented with template classes (Slistutl<> and Slinkutl<> which can be found in the ZLib and Utility libraries library).

The most notable method of ''ImissionIGC'' is the the ''''Update'''' member method.
It is called every ticks on the server and it's propagated in the various IGC object lists and update their states according to the game logic.

When the game needs to create a new object the IGC library usually provides a 'template' for this object, instead of the game creating it from scratch. The template holds several attributes that are used as initial values for the corresponding attributes of the new object. There can be many different templates for a given object type and the game must tell (<i>tell who? -juck</i>) which template to use when creating an object. This is how there can be different factions with different stations, ships and weapons.

For example: the class representing active missiles is ''CmissileIGC'', it uses the ''ImissileIGC'' interface and a new missile is initialized from a chosen CmissileTypeIGC (ImissileTypeIGC interface). Check the IGC classes diagram for the list of all IGC interfaces including the template ones.
All these templates are stored in static lists of IGC objects and because they are constant they're not transmitted between the server and the clients. Instead the data is stored into what we call a core file. So when a client joins a game on a server the server tells the client the core file name the game is using and the client will load it from its local artwork folder. This process avoids having to send large files over the network. If the file doesn't match then the client will get an error message "files out of sync".

=== IGC Callbacks ===
Since both server and client share the IGC code many of the game state changes can be handled on the client side alone, without the need for sending information over the internet.

For example: when a ship is destroyed the client will need to draw the ship explosion but the server does not. However the server does need to propagate that event to the other clients (or at least to the clients which need to know about that explosion).
Both client and server are said to be 'consumers' of the IGC library.

Consumers of the IGC library must implement the ''IsiteIGC'' interface in order to be called upon game state changes. The server implements it in the ''FedSrvSiteBase'' class and the client in the ''BaseClient'' class. We can view the ''IsiteIGC'' interface as a ''set of event callback functions''. Understanding how this works is the main step of understanding the whole IGC library.
''IsiteIGC'' is not the only callback set, there are others:
*the ''ThingSite'' interface which deals with objects having a model (mainly all IGC objects derived from ''TmodelIGC<T>'')
*the ''ClusterSite'' intertace which deals with sectors.
These allows to add callbacks on a per object scope instead of using only the global ones of ''IsiteIGC''.


=== Client/Server communication & updates ===
Since both client and server share the same IGC code but react differently to it, only a subset of the game logic updates are done within the IGC library. The main entry for this is CmissionIGC::Update(...) which is called every tick on all clients and server (but each client has only a subset of the a game IGC objects whereas the server has everything).

The remaining game logic updates are all handled by the server. This includes collisions, damages, object creations and some object deletions (some object deletions are processed inside IGC library and so are performed on all sides during the ''Update(...)'' without requiring network exchanges).

Even if IGC is the game logic layer, a lot of game logic code isnt in it. So keep in mind when you are making changes to the game logic: they require careful inspection and knowledge in order to be performed correctly - it's not all in the IGC library.


WinTrek - Allegiance Client
'''Allegiance.exe''' is the game client. It is build from many subprojects, the top one been src\WinTrek.

  • The client (refered as '''WinTrek''' there after) consists of several layers on top or next of each others.
  • The lower one is ClintLib which is the minimalist game client without any UI at all. It deals with everything needed to connect to lobby/servers and handles the game logic.
  • WinTrek is the code that links ClintLib with 3 engines (gfx, effects and sound) and a training module in order to produce Allegiance.exe.

These various components are explained here after.


ClintLib
The '''ClintLib''' name is presumed to be a shortcut for "Client Library". It's a library project that use IGC library and produces an interface-less, minimalist game client that can fully communicate with game servers and the lobby.
The main class of ClintLib is ''BaseClient'' from which any working allegiance game client needs to inherit from (<i>inherit <u>what</u> from? -juck</i>). As of today, only 2 known executables are built on it: Allegiance.exe and the Pigs test system.
ClintLib is totally independent of the "engines" layers. Its purpose is to isolate everything that is about game logic and network communication. It's definitely the starting foundation on which one could write a brand new client with a new gfx engine for instance.

Graphic engine
This is the graphical engine. It deals with .. TBC stub

Effect engine
The effect engine is built on top of the graphic engine... TBC stub

Sound engine
stub

Training
stub

==FedSrv - Allegiance Game Server==
===AGC Library===
===AllSrvUI===
stub

==Lobby - Allegiance Lobby Server==
stub

==Tools==
===XMunge===
XMunge is a ''build time'' tool aimed at manipulating DirectX .X files.
XMunge uses http://en.wikipedia.org/wiki/Direct3D%23History Direct3D Retained Mode which has been abandoned due to low adoption.
This tool definitely could use a complete rewrite.

===Pigs===
Pigs are a set of testing tools. Their main purpose is to provide a way to simulate many allegiance clients by using automated 'bots' that behave according to various scripts. This allows a single developer to simulate a game with many players during testing.

To do so, the Pigs use the same Clintlib library than the game client in order to fully behave like real clients (at least as seen from the server). This is handy to stress test the server, IGC, and networking APIs.

===mdlc===
MDLC is a ''build time'' tool aimed at performing some manipulations on MDL model files.
For instructions on how to use it see MDLC.

One important thing about MDLC is that its code use the same Graphic_engine code (src\engine) than the allegiance client, so it is always in sync regarding what models the client can handle.

Last edited Aug 20, 2011 at 2:12 PM by kgersen, version 3
